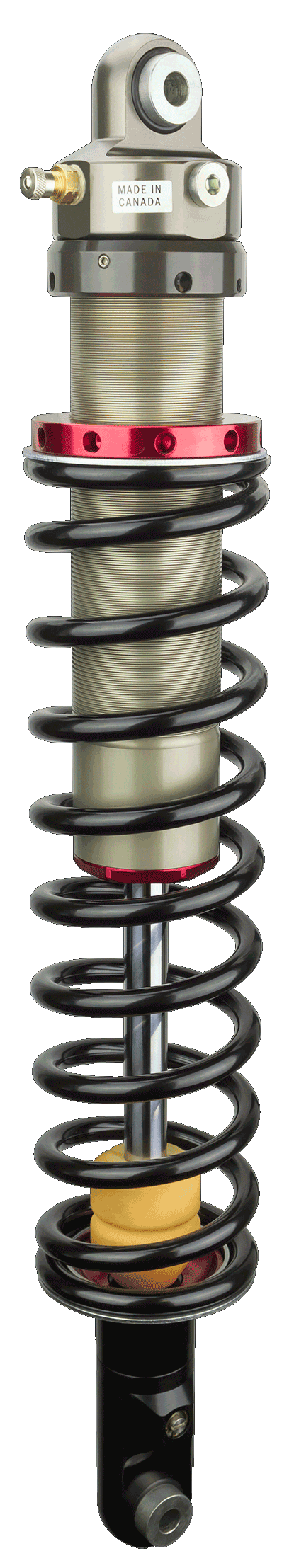

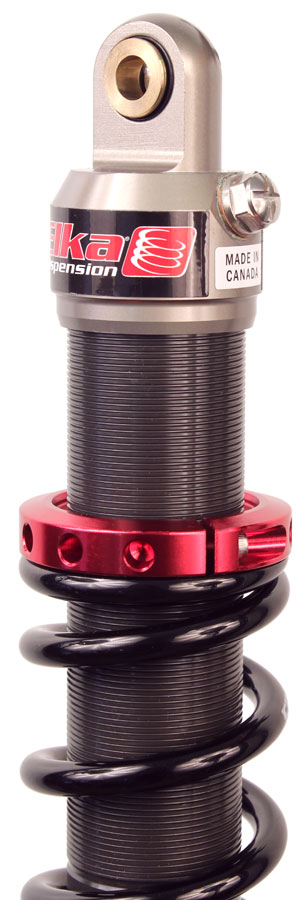

The Stage 2 shocks might be simple in appearance and usage but they are packed with value and engineering to offer you an improved and versatile ride

Sometimes less is more and our Stage 2 model is a good example. With less adjustments, you can pay less and still get the same quality components and careful craftsmanship as our higher models.. While they are not optimized for competitive use, they will greatly improve your UTV’s handling and comfort. Don’t be fooled by the Stage 2’s simplicity, these value-packed shocks are some of the best replacement shocks you can buy for your UTV.

STAGE 2  // BENEFITS

  • Designed for recreational and OE replacement applications
  • Simple to use, bolt-on upgrade for improved handling, stability and comfort
  • Perfect choice for drivers looking for a good shock at a good price
  • Vehicle-specific tuning, calibrated for your personal weight and type of riding
  • Ideal choice to give a new life to used vehicles or earlier models

STAGE 2 // AVAILABLE CONFIGURATIONS

  • Front shocks, 36mm or 46mm, sold as pair
  • Rear shocks, 36mm or 46mm, sold as pair
  • This product is not offered for high-performance vehicles

STAGE 2 // ADJUSTMENT FEATURES

REBOUND DAMPING

Controls the speed at which the shock absorber returns to its fully extended position after being compressed from an impact, keeping the wheels on the ground for maximum traction and reducing the bucking effect caused by the spring pressure pushing back after an impact.

To use, turn the adjuster clockwise to slow down the rebound or turn counter-clockwise to speed up the rebound.

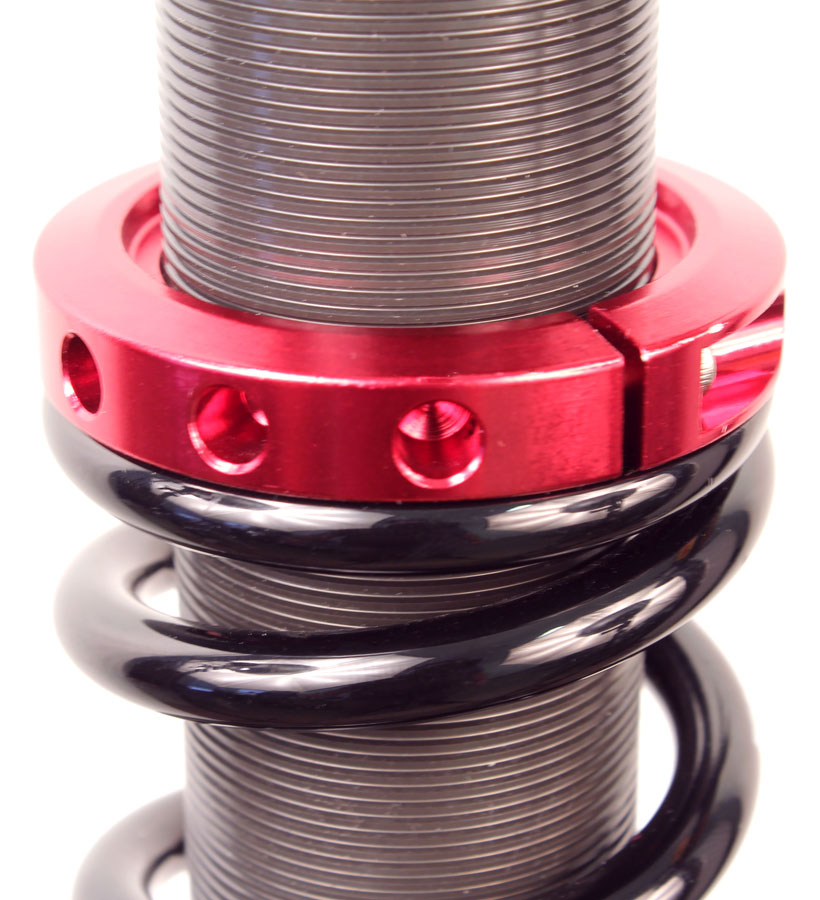

THREADED SPRING PRELOAD

Lets the rider fine-tune the initial force applied on the springs and precisely balance the weight distribution across the front and rear wheels while setting up the ride height (ground or chassis clearance) and to lower or raise the vehicle to adapt to various situations or to suit your personal preference.

To use, turn the preload adjustment ring clockwise (from top of the shock) to increase preload and raise the vehicle or turn counter-clockwise to reduce preload and lower the vehicle.

STAGE 2 // TECHNICAL FEATURES (click title for details)

  • Components that are precision-machined from aeronautical grade billet aluminum
  • Sleek, lightweight reservoir with recessed cap to better protect the nitrogen valve
  • Ultra-light spring design with bigger outside diameter and less coil turns, providing important weight reduction while maintaing the reliability and intuitive ride-height adjustability of coil springs vs. air springs
  • Reduced weight and friction = less stiction and lower operating temperature = more resistance to fading
  • Crossover spacers design that reduces the accumulation of debris, therefore reducing wear on the body
  • Optional lightweight composite shock protectors to provide further protection against roost and other debris
  • Neutral look and colors that blends well with any quad model and livery
  • Hard-anodized aluminium internal floating piston for low operating temperature
  • Aluminum body that dramatically reduces overal weight and better dissipates heat
  • Hard-anodized to very tight tolerances to improve durability and further reduce friction
  • Special thread design on the aluminum body that provides more surface and less friction to making preload adjustments much easier
  • Provides a smooth surface that helps reduce internal friction inside the body
  • More durable finish than regular sulphuric anodization generally used on lower-end products
  • Hard chrome-plated shafts
  • Seal head design is composed of external dust wiper, high-pressure step-seal and o-ring
  • 46mm shocks also feature a double dust wiper to further prevent debris for entering the shock
  • Low-friction o-ring material is certified resistant to greater temperature changes
  • High material memory that helps maintain sealing properties in harsh conditions
  • All sealing components are premium quality, carefully selected for their optimal balance of performance and durability
  • Fully synthetic proprietary blend
  • Ultra-low friction light viscosity grade
  • Ultra-resistant to high temperature
  • Extended usable life

ELKA’S UNIQUE BENEFITS

  • Shocks are vehicle-specific and are designed to maximize the potential of that vehicle’s geometry

  • Tuning is optimized for your intended riding style
  • Spring setup according to your weight

  • After-sales support directly from the manufacturer
